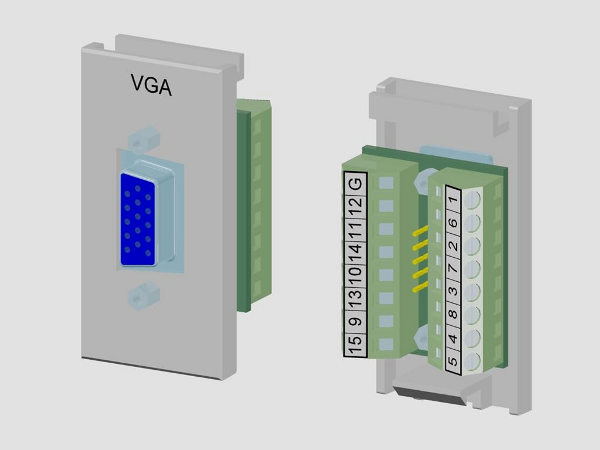

SVGA Technical Drawing SVGA Module Front Back

SVGA AV Screw Temination Module

SVGA Horizontal PCB

Part Number: UA1-GH01-001

Our 25x50 SVGA modules is manufacturered with high quality components and has all pins connected.

SVGA Horizontal Module Datasheet
datasheet
Adobe Download

SVGA AV Screw Temination Module - Description


  • Shielded VGA connector.
  • 25 x 50mm module.
  • Horizontal PCB-mounted VGA outlet for shallow back boxes.
  • Y-configuration screw connections.
  • ‘VGA’ module label.
Pin Name Dir Description
1 RED ---> Red Video (75 ohm, 0.7 V p-p)
2 GREEN ---> Green Video (75 ohm, 0.7 V p-p)
3 BLUE ---> Blue Video (75 ohm, 0.7 V p-p)
4 ID2 <--- Monitor ID Bit 2
5 GND ---- Ground
6 RGND ---- Red Ground
7 GGND ---- Green Ground
8 BGND ---- Blue Ground
9 KEY - Key (No pin)
10 SGND ---- Sync Ground
11 ID0 <--- Monitor ID Bit 0
12 ID1 or SDA <--- Monitor ID Bit 1
13 HSYNC or CSYNC ---> Horizontal Sync (or Composite Sync)
14 VSYNC ---> Vertical Sync
15 ID3 or SCL <--- Monitor ID Bit 3
